RANGE HOOD SIZES: HOW TO FIND THE PERFECT WIDTH AND HEIGHT
Selecting a range hood with the right dimensions is crucial for both the functionality and aesthetics of your kitchen. A properly sized range hood not only helps ensure effective ventilation but also complements your kitchen's design. Determining the best range hood dimensions for your kitchen is an effective way to start narrowing down your search for powerful venting options. By understanding standard sizes and how to measure your space, you can make an informed decision that enhances your cooking experience and kitchen atmosphere.
Read on to learn more about standard range hood heights, depths and widths, as well as how to measure your kitchen space for the right fit.
WHAT ARE STANDARD RANGE HOOD DIMENSIONS?

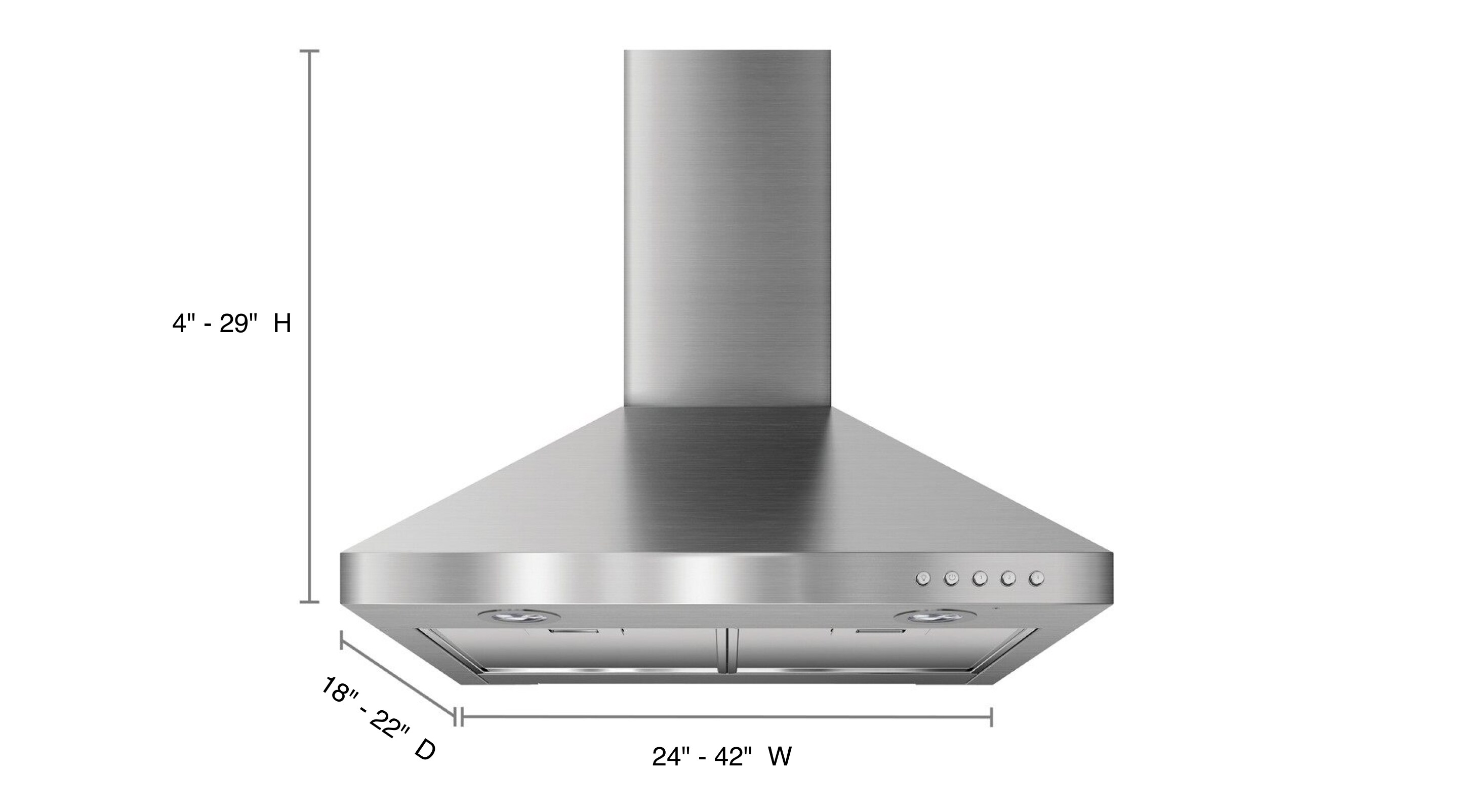

Range hoods are typically available in widths that mirror those of ranges and cooktops, spanning about 24 to 42 inches, with hood depths that most often sit between 18 and 22 inches. Range hood heights are highly dependent on the hood type and can be anywhere from 4 to 29 inches tall.
The most common size for range hoods is 30 inches wide, as this corresponds to the standard width of many ranges and cooktops. Explore Maytag brand’s selection of 30-inch range hoods to find options in this popular size.
To better understand the functionality behind these dimensions, you can read more and discover how range hoods work.
STANDARD RANGE HOOD WIDTH
Whether you choose a traditional or downdraft hood, your range hood width should match the width of your cooktop or range. The majority of cooktops and ranges are 30 inches, 36 inches, 42 inches or 48 inches wide, so most range hoods are available in these same widths.
STANDARD RANGE HOOD HEIGHT
Range hood heights typically span from 10 inches to 13 inches for standard configurations found over cooktops and ranges. However, heights can vary drastically between different hood types. Taller configurations, like wall mount and island hoods, typically span from 24 inches to 29 inches in height. Shorter hood types, like under cabinet hoods, microwave range hoods and range hood inserts, can span anywhere from 4 inches to 18 inches tall.
The space above a range hood can vary depending on the kitchen design and hood type. In many kitchens, cabinets are installed directly above the range hood, providing additional storage and a cohesive look. For wall-mounted hoods, you might see a decorative chimney extending to the ceiling, which can be partially or fully exposed. Some modern designs feature open shelving above the hood for a more open feel. In kitchens with high ceilings, the area above a range hood might be left open, sometimes decorated with artwork or architectural elements. The configuration largely depends on the hood style, kitchen layout and personal preferences.
STANDARD RANGE HOOD DEPTH
Your range hood should be deep enough to cover all rear and front burners to most effectively vent your cooking space. For most range hoods, you can plan on a depth of about 18 inches to 22 inches for full coverage. Downdraft vents typically require installation in a cabinet below that's at least 24 inches deep.
RANGE HOOD SIZES FOR SMALL KITCHENS

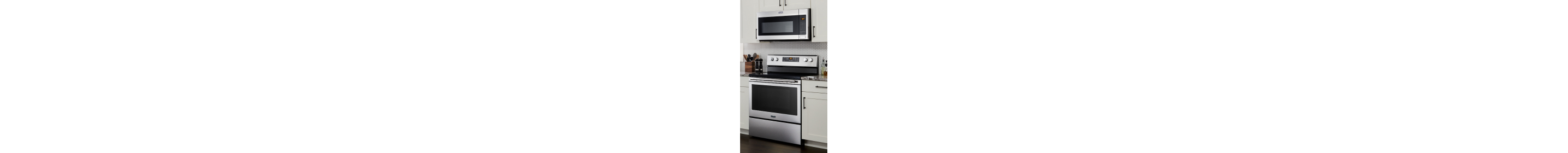

For small kitchens, compact range hoods typically measure 24 to 30 inches wide, 10 to 12 inches high and 18 to 20 inches deep. Under cabinet and microwave hood combination units are popular space-saving options. Choose a hood that matches your cooktop width for optimal performance.
HOW DO I MEASURE FOR A RANGE HOOD?
Measuring for a range hood is a straightforward process that will help you determine what width, height and depth of range hood best fits your kitchen. Follow the steps below to find the right range hood dimensions for your space.

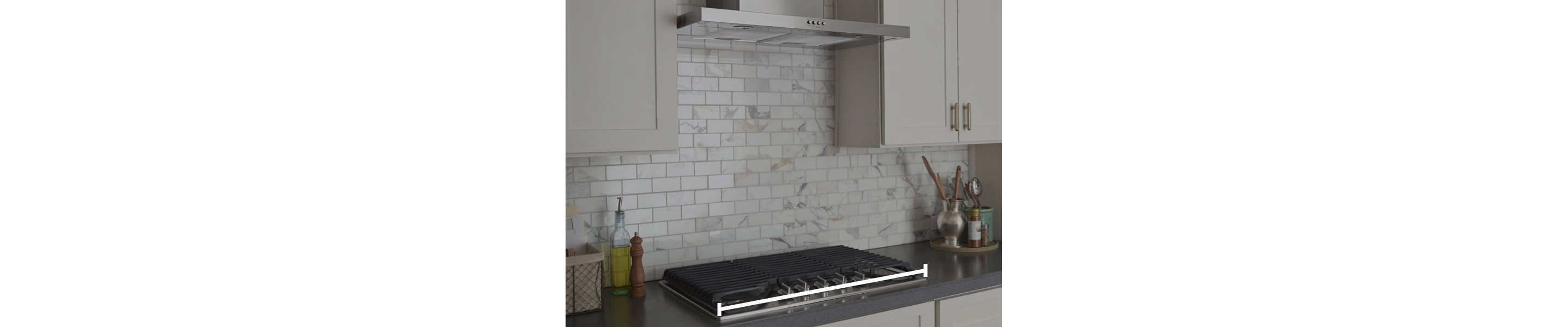

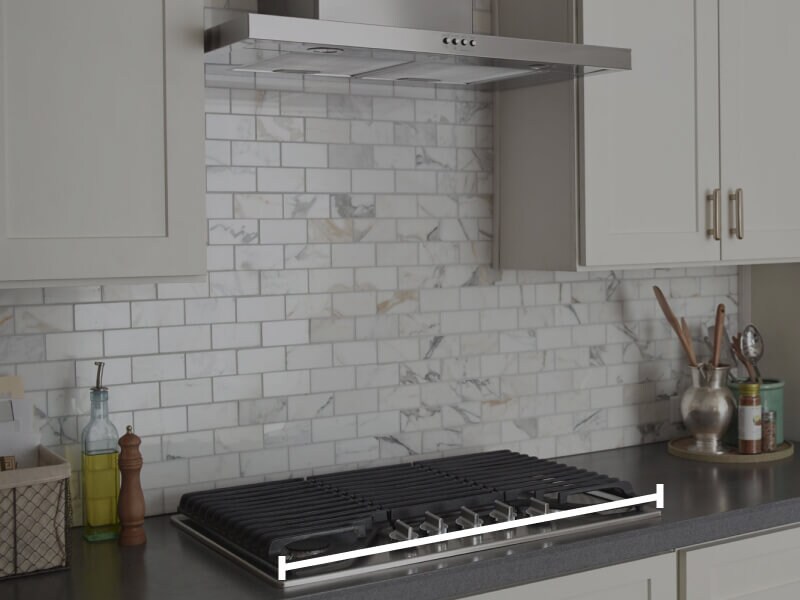

STEP 1: MEASURE THE WIDTH OF YOUR COOKTOP OR RANGE
To figure out the width of your cooktop, run a measuring tape from one side of the cooking surface to the other while keeping the measuring tape parallel to the cooktop’s outside edge.

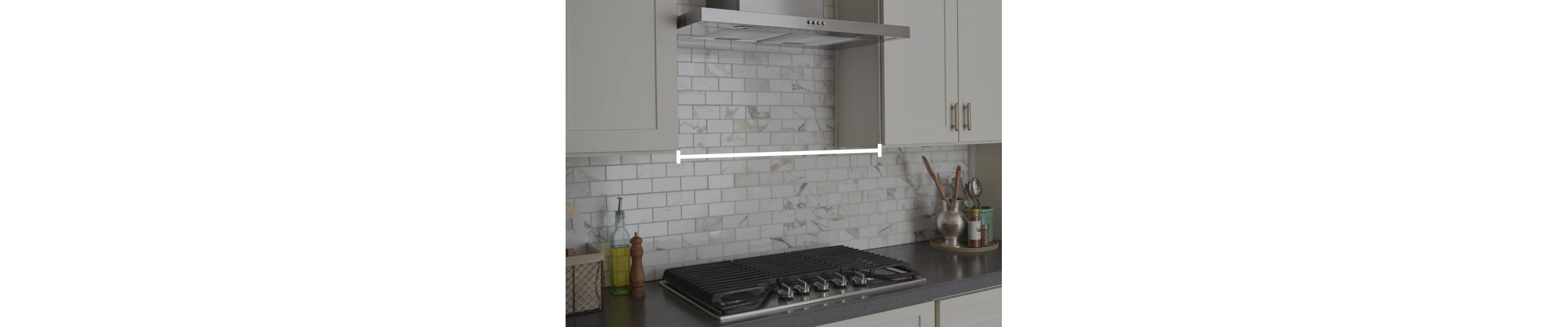

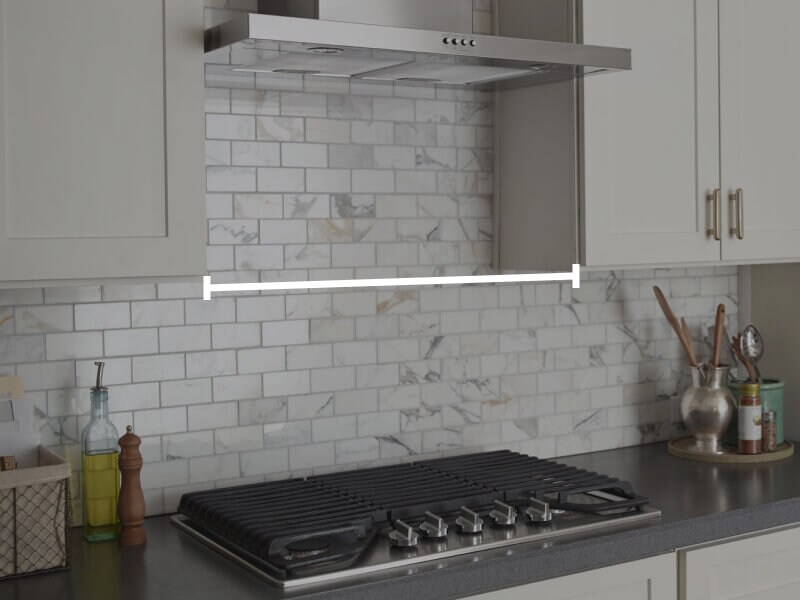

STEP 2: MEASURE THE WIDTH BETWEEN THE CABINETS
Measure the space between cabinets by starting the measuring tape on one side of the cabinet cavity above the cooktop surface, then extending it straight across to the opposite side.

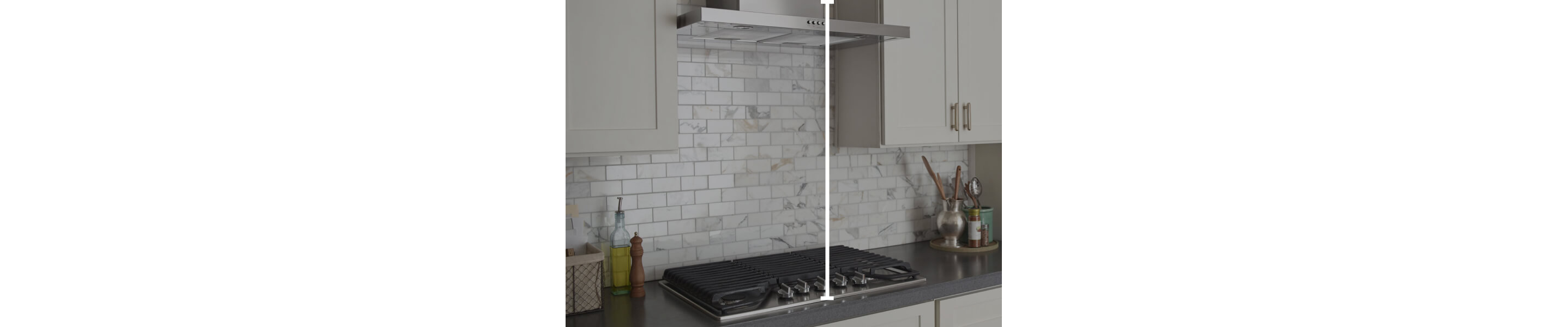

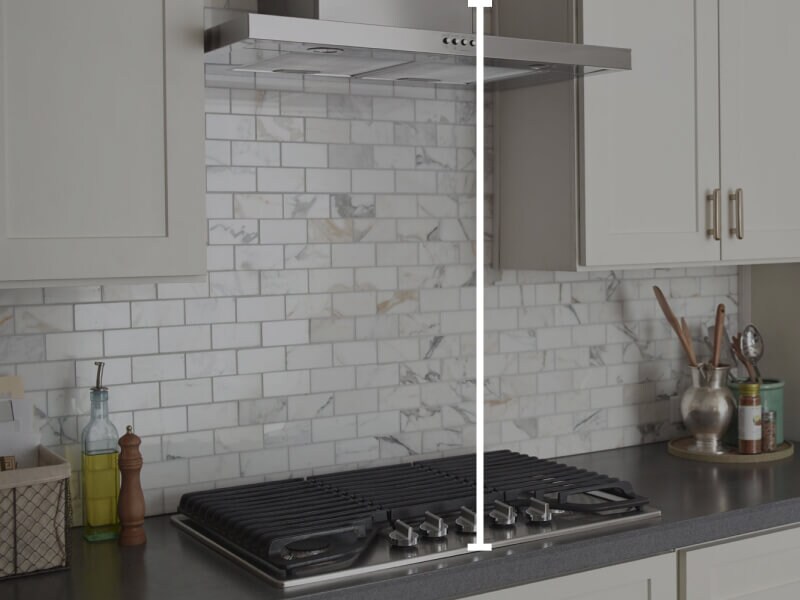

STEP 3: MEASURE THE HEIGHT ABOVE YOUR COOKTOP
Determine the available space above your cooktop by attaching a measuring tape to the base of the cabinets or the ceiling directly above the cooktop’s surface. Extend the measuring tape straight down until it reaches the cooktop.
STEP 4: MEASURE THE DEPTH OF YOUR COOKTOP OR RANGE
To measure the depth of the cooking surface, hold one end of the measuring tape at the back end of the cooktop, excluding the control panel and trim, then extend the measuring tape to the outside edge of the cooktop surface.
SHOULD MY RANGE HOOD BE LARGER THAN MY COOKING SURFACE?
While it's not strictly necessary for your range hood to be larger than your cooking surface, choosing a slightly wider hood can provide enhanced ventilation coverage. A range hood that is equal to your cooktop's width is sufficient, but opting for one that's up to six inches wider (three inches on each side) is also acceptable and can offer improved ventilation performance.
The hood should be deep enough to cover all burners and mounted at the proper height above the cooktop to effectively vent the grease, odors and smoke that food prep generates.
When selecting a larger hood, consider the following:
Improved capture: A wider hood can better capture smoke and odors that might escape from the sides of your cooking surface.
Aesthetic balance: A slightly larger hood can create a more prominent visual feature in your kitchen design.
Future flexibility: If you plan to upgrade your cooktop in the future, a wider hood gives you more options.
HOW DO I DETERMINE THE CORRECT RANGE HOOD MOUNTING HEIGHT?
Mounting your range hood at the correct height above the cooktop surface helps the vent circulate air and remove grease and odors most efficiently.
Typically, electric ranges or cooktops require 24 inches between the cooktop surface and range hood, while gas ranges or cooktops require 27 inches between the two. No matter which type of range you have, there should be no more than 36 inches between the cooktop’s surface and the start of the range hood.
It’s best to follow the hood manufacturer’s installation requirements when determining the right height for your range hood, but some general clearance guidelines exist.
HOW DO I CHOOSE THE RIGHT SIZE DOWNDRAFT HOOD?
Selecting the right size downdraft hood for your kitchen involves considering several factors. You will need to match its width to your cooktop (common sizes: 30-48 inches) and ensure a cabinet depth of 24+ inches. You will also need to consider the hood’s ventilation power, the BTU compatibility (for gas cooktops) and your kitchen’s layout and venting options.
Remember, while size is crucial, the effectiveness of a downdraft hood also depends on its power and proper installation. Always consult the manufacturer’s guidelines and consider professional installation for optimal performance.
