Cooktop Sizes & Dimensions Guide
Cooktops come in a variety of sizes and shapes to accommodate different kitchen layouts and cooking needs. Whether you're replacing an existing cooktop or building a new kitchen, understanding the available sizes and dimensions is key to choosing the right one for your space. Use this guide to better understand what size cooktop is best suited for your needs.

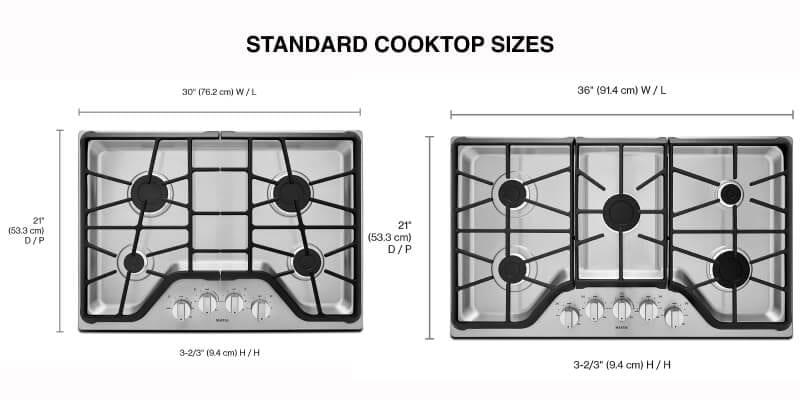

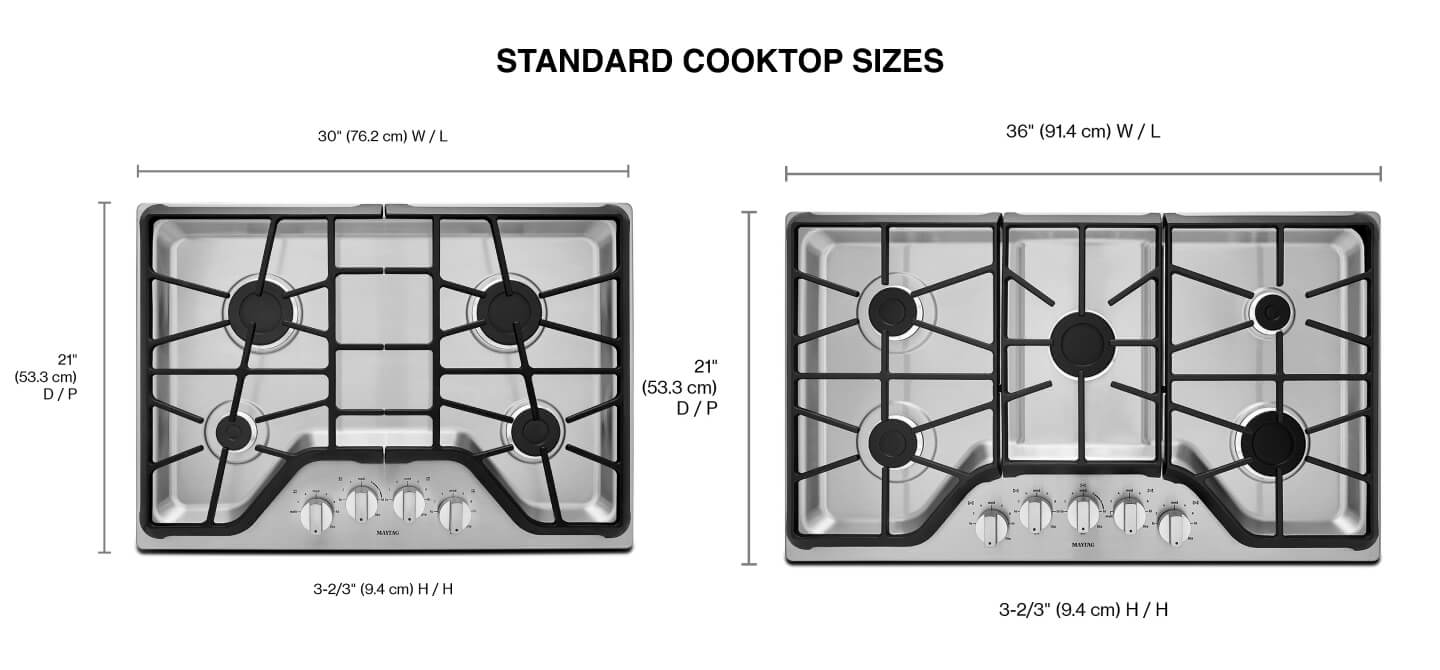

WHAT IS THE STANDARD COOKTOP SIZE?
The standard size of a cooktop is usually between 30" or 36", although there are other sizes available such as 15"-24", 45" and 48". It's important to consider the number and size of burners, amount of trim and countertop space when selecting your size.
Maytag brand offers 4-burner and 5-burner cooktop options that provide enough space for you to simmer, warm and boil all at once.
SHOP MAYTAG® 30" AND 36" COOKTOPS
Maytag® 30-inch and 36-inch cooktops are engineered to help you power through mealtime. Choose from Maytag® four burner or five burner cooktop options for the space you need to simmer, warm and boil all at once.
Select Maytag® induction cooktops offer features that help you maximize your cooktop surface, like the XL Cooking Zone. This extra large element is designed to evenly heat even your largest cookware, like oversized pans and griddles. Plus, you can mix and match two smaller pans as needed.
How much space does a cooktop need?
Your cooktop needs to fit inside the existing cabinet cutout for proper installation. It's important to note that cooktop dimensions are typically bigger than the appliance cutout to properly align with your counters.
For example, the standard size of a 30" cooktop requires a minimum cutout width of 29-1/2" and a length of 20".
Compare gas, electric and induction cooktops
Deciding between range or cooktop?
How much counter space do I need next to a cooktop?
It’s recommended to have a minimum of 8" of counter space on either side of the cooktop for ease of use and food preparation. If you're installing an island cooktop, you’ll need at least 30" of counter space around the cooking surface to provide adequate room to work with pots, pans and ingredients.
Additionally, if you're installing a range hood, it should be placed at least 24" away from the cooktop.
How far does a cooktop have to be from a wall?
When installing a new cooktop, it is important to leave at least 3" of clearance between the back of the cooktop and any walls to allow for proper ventilation and heat dissipation. Some models require up to 10" of space, so consult your product manual for model-specific clearance measurements.
Maytag® cooktops
One cook space, full-meal power
Whether you’re working with a small space or just want more room for cooking, Maytag® cooktops offer power, durability and performance for every meal
What is the difference between cooktop sizes and cooktop cutout measurements?
The cooktop size refers to the actual measurement of the appliance, while the cutout measurement is the minimum required space you need to be able to install the cooktop into your counter. The difference between these two measurements is typically 1/2" or less and should be taken into consideration when selecting a new cooktop for your kitchen.
Following these measurements and guidelines can help ensure that you select the right cooktop for your kitchen. With the proper size, installation and ventilation, you can enjoy cooking with your new cooktop for a long time.
HOW TO MEASURE FOR A NEW COOKTOP
To measure for a new cooktop, start by measuring the new appliance’s dimensions, such as width and depth, along with the size of the cutout to ensure they’re compatible. If you’re replacing an existing cooktop, simply measure the existing appliance to find out which size is suitable for your space.
Read on for detailed steps on how to measure for a replacement cooktop.

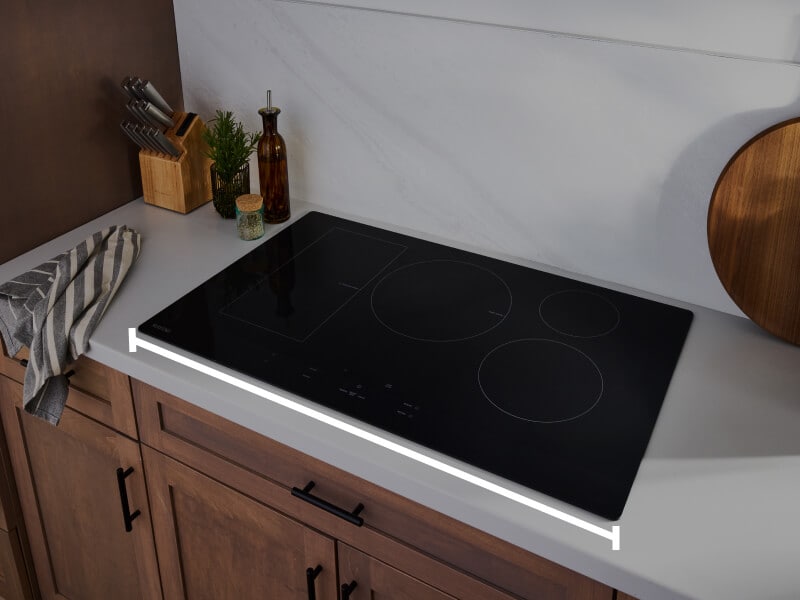

1. MEASURE COOKTOP WIDTH
To measure the width of your existing cooktop, start by uninstalling the appliance first for the most accurate measurements. Run a tape measure from the right outer edge to the left outer edge of the cooktop surface.
2. MEASURE COOKTOP DEPTH
Next, measure the depth of the cooktop by running a tape measure from the front to the back of the surface. Be sure to include the control panel in your measurements.

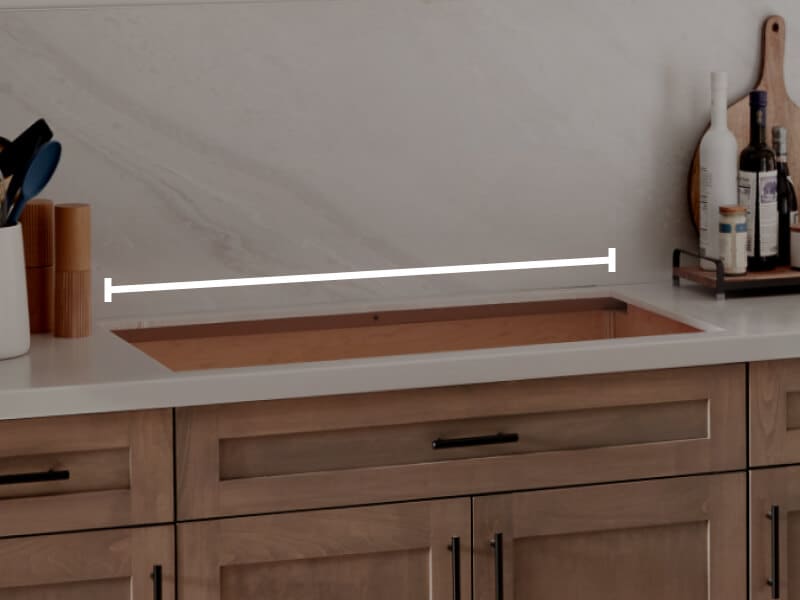

3. MEASURE COOKTOP CUTOUT WIDTH
Measure the width of the cutout by placing a tape measure from the right edge to the left edge. Take two measurements, one at the front of the cutout and one at the back, and use the smallest measurement for accuracy.

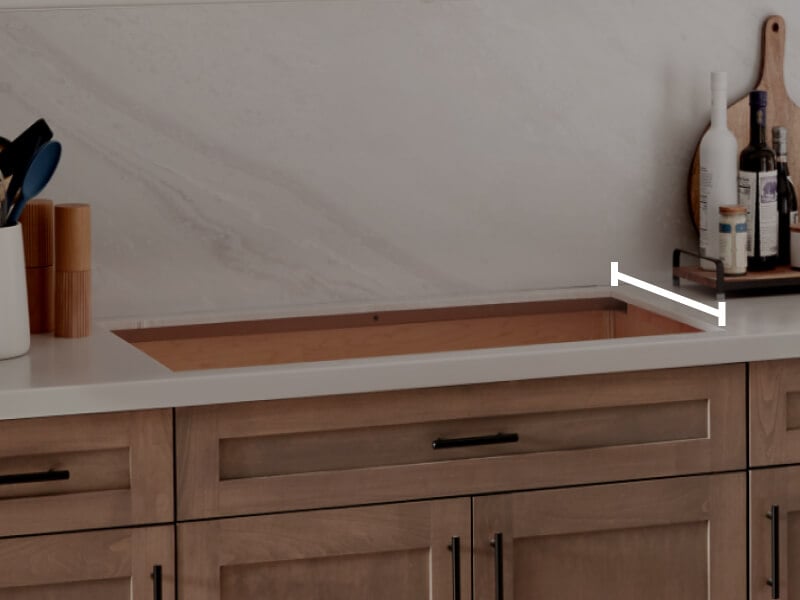

4. MEASURE COOKTOP CUTOUT DEPTH
Finally, measure the depth of the cutout by running a tape measure from the front edge to the back of the cutout. Take two measurements, one on the right side and one on the left, and use the smallest dimension if there’s a difference between the two.
How do I know what size cooktop I need?
Though 30" cooktops are considered standard, the best way to determine the ideal size for your cooktop is to measure the existing countertop cutout and compare it with the available sizes. If you're planning a remodel, consider how you plan to use your cooktop to help you choose the right stovetop.
If you have a large family or entertain guests frequently, you may benefit from a larger cooktop with four or five burners. It is also important to consider where you plan to install your new cooktop, as the necessary clearances differ when installing a cooktop in a countertop or on a kitchen island.
Tips for choosing the right cooktop size
There are several other factors to keep in mind when shopping for a new cooktop. Discover tips for choosing the right size stovetop for your kitchen below.
Fuel type: The type of fuel your cooktop uses may affect the dimensions. For example, gas cooktops require a larger cutout than induction or electric models to accommodate for venting requirements and range hoods.
Number of burners: The number of burners you require may determine the size. A four burner cooktop is typically 30" in width while some five burner cooktops can be up to 48" wide.
- Features: Consider what features are important to you when shopping for a new cooktop. If flexibility is a priority, look for models with cooking options like the Reversible Grill and Griddle from Maytag brand. If you value power and control in your cooking or have a large, open kitchen, look for a gas cooktop with high BTUs.
Ventilation: Proper ventilation may be required by code, depending on where you live. However, hoods or vents can help maintain a comfortable cooking environment regardless. The width of your hood or vent should be at least as wide as your cooktop to help capture and remove smoke, grease and odors.
- Cooking Habits: Considering your cooking habits can help you choose a cooktop that best suits your lifestyle. If you often cook for a large family or make multiple dishes and sides at once, a cooktop with more burners may suit you best. If you enjoy quick temperature adjustments while cooking, an induction cooktop may be what you’re looking for.
